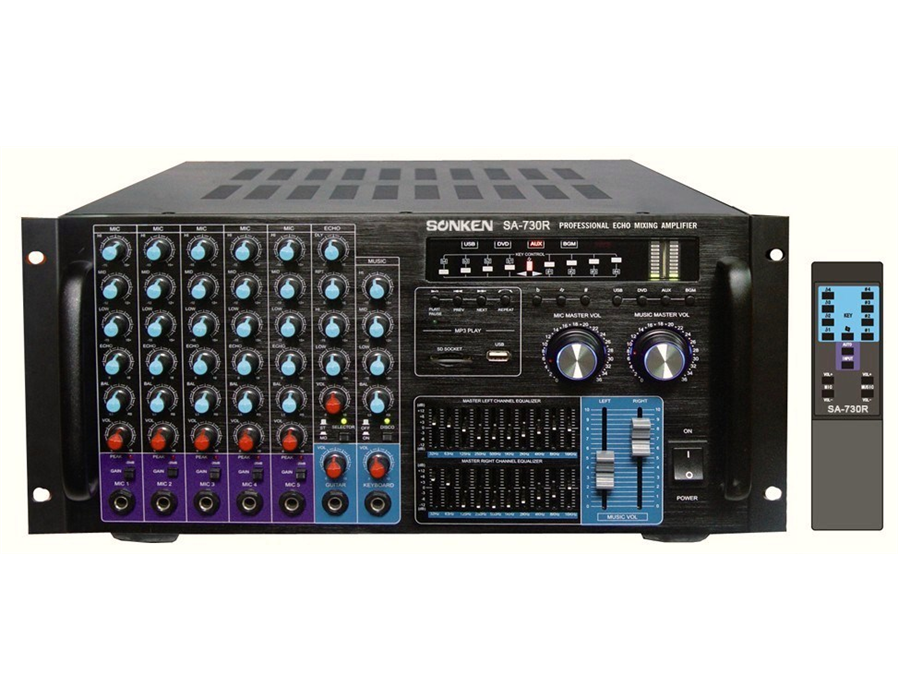

SA-730R
MP3 MIXING AMPLIFIER
SA-730R
DESCRIPTION:

Newest Model: 2012´s hottest product from Sonken, the world´s first karaoke console mixing amplifier with a built-in 450W + 450W of hard hitting power.

Equipped with a BBE processor, music & vocals come out with rich details heard in concerts, The newest feature added is the double 10 band equalizer which allows you to professionally fine tune your speakers, also built with rich professional console appearance.

The Sonken SA-730R also includes a SD/USB slot reader allowing you to plug your MP3 player;

This mixing amplifier is designed with KJs and serious karaoke singers in mind; It´s patented design will forever change how you will be using your karaoke mixing amplifiers in the future.
FEATURES:


    * 450W + 450W Watts Max Power Output
    * Built-in MP3G Player Module
    * Console Separate Adjustment
    * 4 Audio/Video Inputs: DVD/AUX/BGM/USB Module
    * 3 Video Inputs: DVD/AUX/BGM and 1 Super Video Output
    * 1 RCA Audio/Video Output
    * 1 SD Card Input + USB Port Input)
    * L/R Multiplex Channel Output Selector
    * Music Low, Mid, High, Balance, Volume Controls
    * Microphone Delay, Repeat, Echo, Low, High Volume Controls
    * Microphone Volume Controls for Low, Mid, High, Echo, Balance, Volume for individual microphones
    * 5 Front 1/4" Microphone Inputs, 1 Guitar Input & 1 Piano Input
    * Master Microphone Control
    * Master Volume Control
    * 4 Audio Outputs (Record Out, Line Out, Subwoofer Out (Music/ Mixing), Mic Out (High/Low)
    * 4 Banana Plug Speaker Connectors
    * 115/230 Voltage for Worldwide Compatible
    * Built-in BBE Sonic Maximizer for both vocal and music
    * DSP Digital Sound Processor
    * True Vocal Cancellation Function to remove up to 90% of lead vocal on any audio track
    * Temperature-Active, Ultra-Low-Noise Fan for non-stop operation
    * Pre-Input and Pre-Output for External Effort
    * 110-250Volt AC Power Outlet


SPECIFICATION:


    * Integrated USB Audio Solution using C-Media CM106 Audio I/O Controller works for PC and Mac
    * Maximum Output: 750W + 750W @ 8 Ohms Max
    * Microphone Input Sensitivity: <20mV
    * Music Input Sensitivity: 250mV / 47K Ohms / 1kHz
    * Microphone Frequency Response: 20Hz - 20 kHz / 3dB
    * Music Frequency Response: 20Hz - 20 kHz / 3dB
    * Microphone EQ characteristics: Treble: +/- 10dB (10kHz), Bass: +/- 10dB (100Hz)
    * Music EQ 10 Channel characteristics: Treble: +/- 10dB (10kHz), Bass: +/- 10dB (100Hz)
    * Key Control Range +/- 6 Half Tones
    * Speaker Wattage Impedance: 4 Ohm - 8 Ohm
    * Voltage: AC 115V - 230V Manual Select
    * Dimensions: 17"(W) x 8.5"(H) x 14"(D)
    * Weight: 60 lbs.


Package Includes:

    * Full Functions Remote Control
    * Operating Manual Book
    * Power Cord
    * Rack Mount Kit
